Exicom Quantum 48V/1200W Rectifier

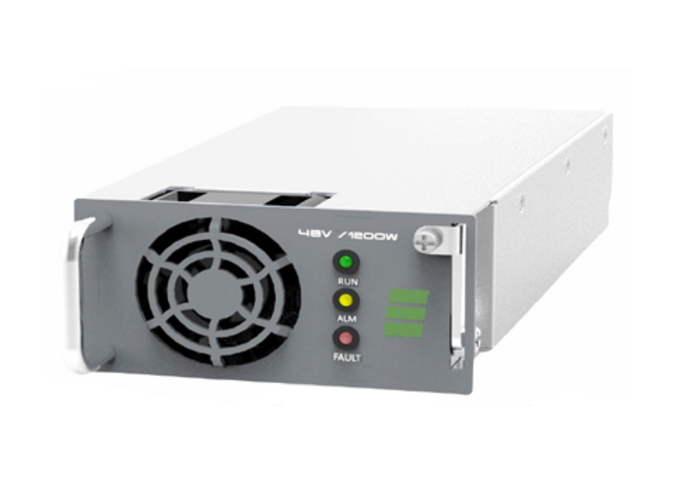

*Photo shown here is not to scale, shown for illustration only.
*Actual product may vary depending upon configuration and version.


Quantum 48V/1200W
High Efficiency Rectifer

Exicom's Quantum 48V/1200W rectier is designed specically for small power applications such as small cell deployment, enterprise applications such as PoE and VoIP, and also telecommunications roadside cabinet installations for IoT, Wi-Fi etc. Small depth allows pole mount, wall mount or in-building applications while
features such as hot plug in, automatic registration allow fast network deployment.

Download Product Datasheet:
Quantum-48V_1200W.pdf

Key Features:

  • High efficiency of 94%
  • Wide operating input voltage and temperature range
  • Hot plugin and user friendly registration for easy maintenance
  • Small depth for pole mount, wall mount and in building applications
  • Multi-application use
  • TUV and CE Compliance

Applications:

  • Telecom: Small cells, LTE/WiMax, broadband & other low power installations
  • Smart Cities: Smart poles, surveillance etc.
  • Power Utilities: Control and protection and communication equipment
  • Railways: Signalling, communication equipment and control & protection

Key Technical Specification:

 Input voltage  90V-300Vac
 Frequency  45-65Hz
 Input Protection  L&N input fuses, MOV transient protection
 Output voltage, nominal  42V-58Vdc, (54Vdc Nominal)
 Maximum power  1000W
 Maximum Current  20A, 48Vdc
 Output Protection  Output fuse protection

 Over-voltage / over-temperature & overload protection

 Short circuit proof
 Efficiency  94.0%
 Power density  26 W/in3
 Communication Interface  CAN Bus
 Cooling  Fan cooled
 Operating temperature  -40 °C to +75 °C
 Dimension  83 x 41 x 210 (mm)
 Safety & EMI  IEC 60950; EN 55022 Class B
